| Materials | G350/G500/G550 galvanised steel |
| Coating | Min.350 gsm |
| Standard | AS 1397 |
+86 020 3613 0113
+86 020 3613 0113
SLIDE DOWN
Product Specifications
| Materials | G350/G500/G550 galvanised steel |
| Coating | Min.350 gsm |
| Standard | AS 1397 |
|

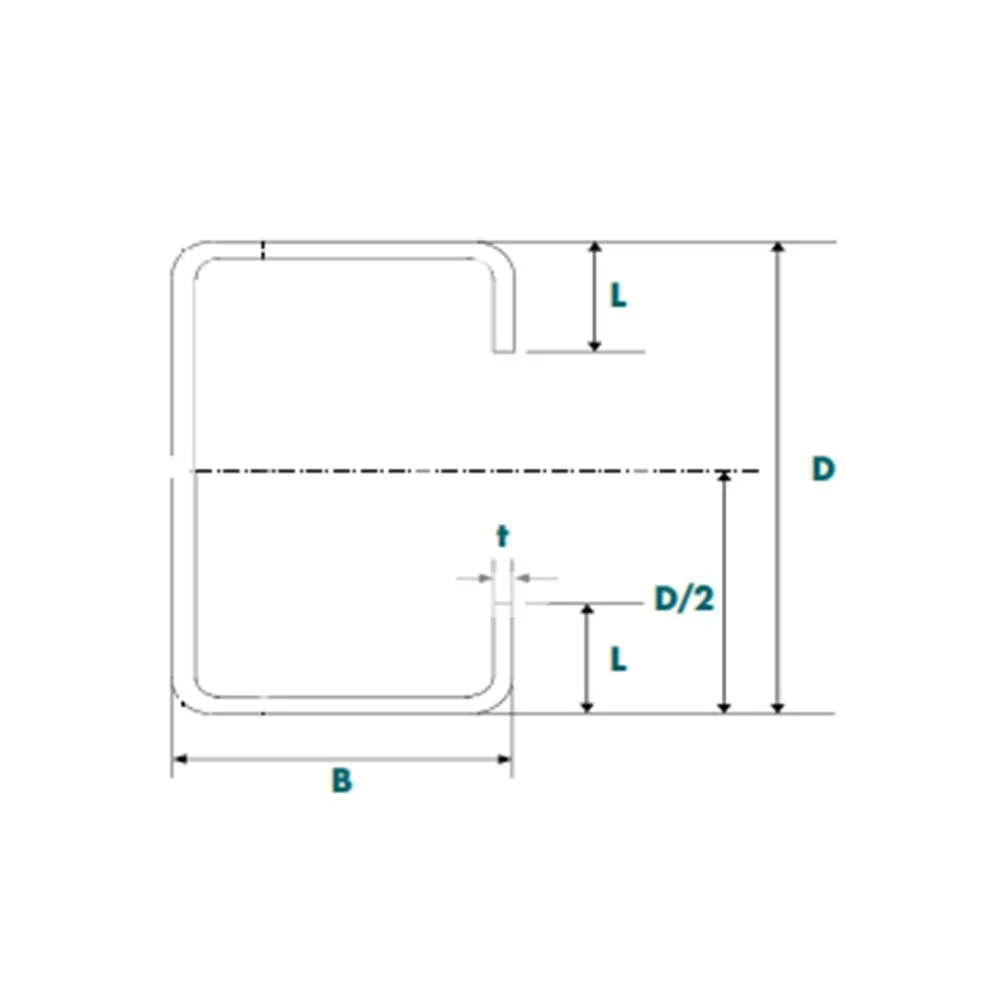

Section |
Thickness (t) mm |
Height (D) mm |

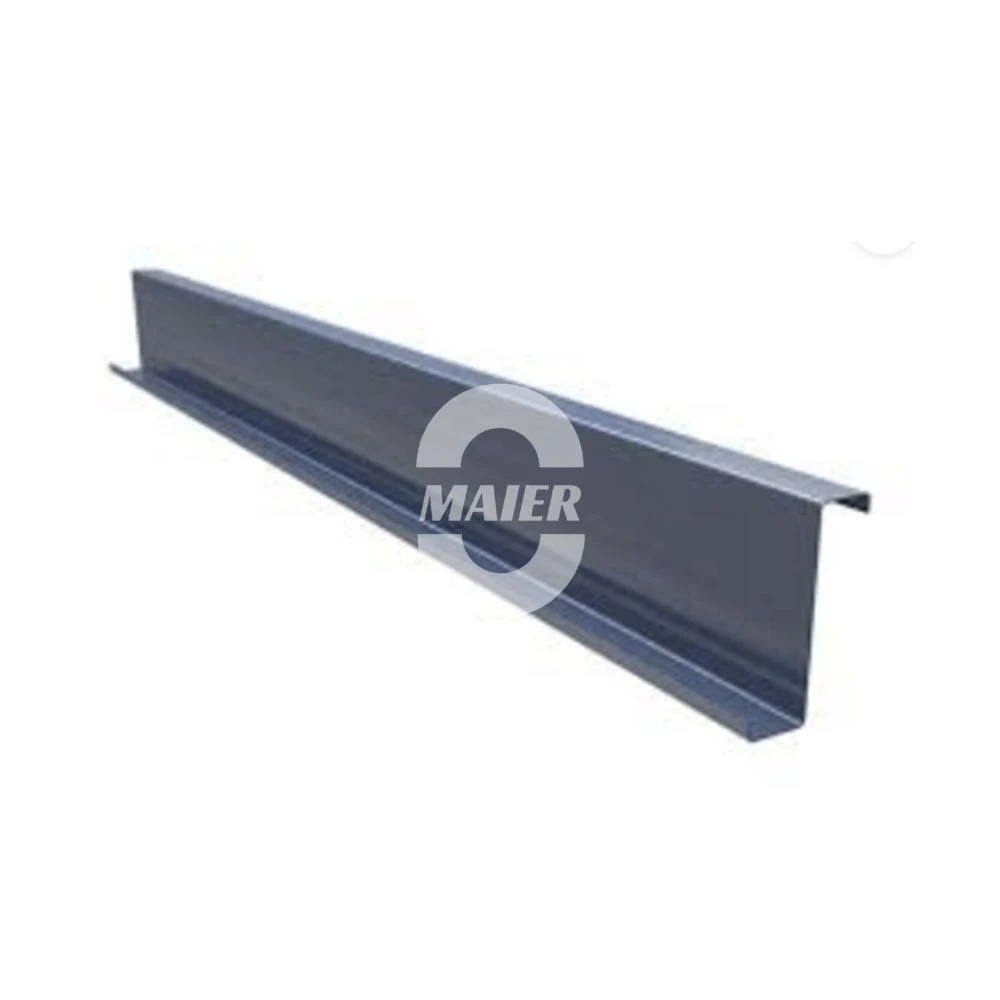

Z PURLINS |
C PURLINS |
Mass kg/m |
|||
|
E |
F |
L |
B |
L |
||||
|
100 10 |
1.0 |
102 |
53 |
49 |
12.5 |
51 |
12.5 |
1.75 |
|
100 12 |
1.2 |
102 |
53 |
49 |
13 |
51 |
12.5 |
2.09 |
|
100 15 |
1.5 |
102 |
53 |
49 |
13.5 |
51 |
13.5 |
2.59 |
|
100 19 |
1.9 |
102 |
53 |
48 |
14.5 |
51 |
14.5 |
3.26 |
|
150 12 |
1.2 |
152 |
65 |
61 |
15.5 |
64 |
14.5 |
2.86 |
|
150 15 |
1.5 |
152 |
65 |
61 |
16.5 |
64 |
15.5 |
3.55 |
|
150 19 |
1.9 |
152 |
65 |
61 |
17.5 |
64 |
16.5 |
4.48 |
|
150 24 |
2.4 |
152 |
66 |
60 |
19.5 |
64 |
18.5 |
5.81 |
|
200 15 |
1.5 |
203 |
79 |
74 |
18 |
76 |
15.5 |
4.46 |
|
200 19 |
1.9 |
203 |
79 |
74 |
18.5 |
76 |
19 |
5.69 |
|
200 24 |
2.4 |
203 |
79 |
73 |
21.5 |
76 |
21 |
7.39 |
|
250 19 |
1.9 |
254 |
79 |
74 |
18 |
76 |
18.5 |
6.45 |
|
250 24 |
2.4 |
254 |
79 |
73 |
21 |
76 |
20.5 |
8.37 |
|
300 24 |
2.4 |
300 |
100 |
93 |
27 |
96 |
27.5 |
10.11 |
|
300 30 |
3.0 |
300 |
100 |
93 |
31 |
96 |
31.5 |
12.66 |
|
350 24 |
2.4 |
350 |
129 |
121 |
30 |
125 |
30 |
12.23 |
|
350 30 |
3.0 |
350 |
129 |
121 |
30 |
125 |
30 |
15.15 |
|
400 30 |
3.0 |
400 |
96 |
96 |
30 |
96 |
30 |
15.15 |
