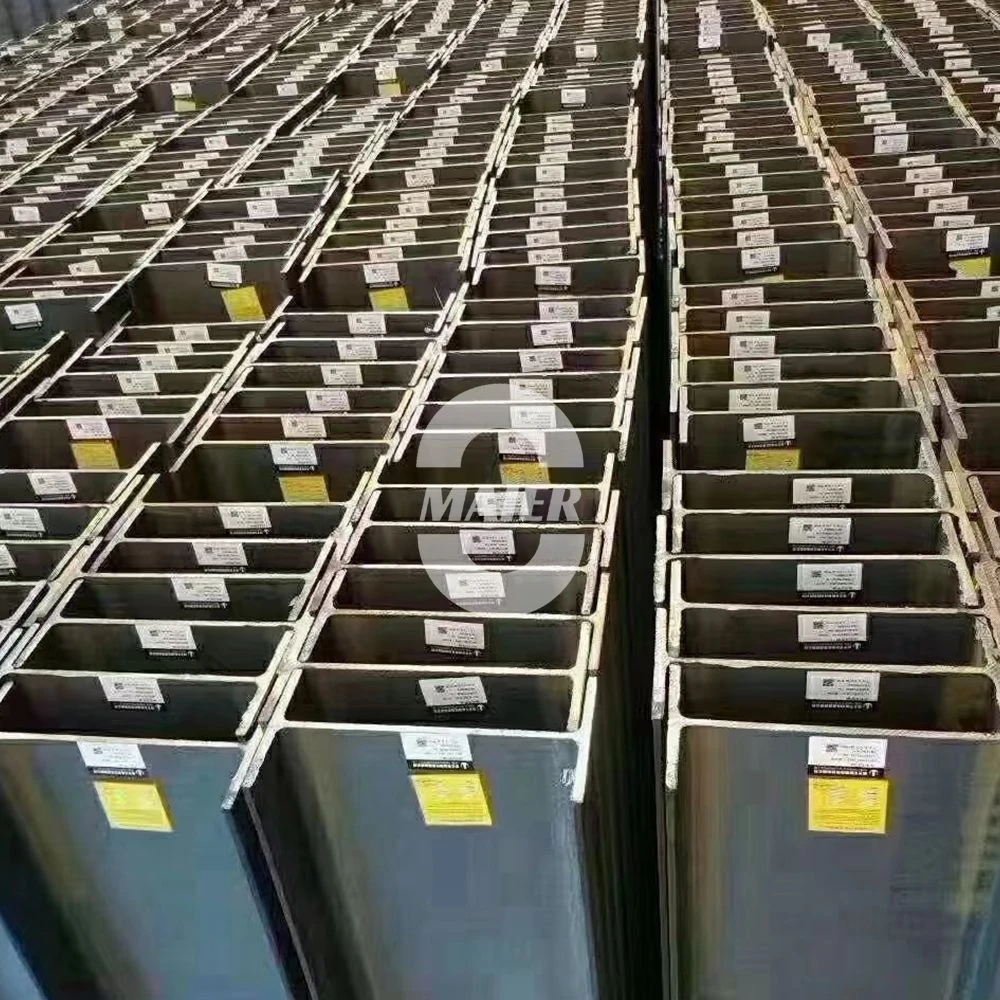

Unverisal Beam
H Section AS/NZS3679.1(UB)
Dimensions and Sectional Properties
▶ Australian/New Zealand Universal Beam (AS/NZS)-UB AS/NZS 3679.1:2010
Product Specifications
|
|
Unit Weight (kg/m) |

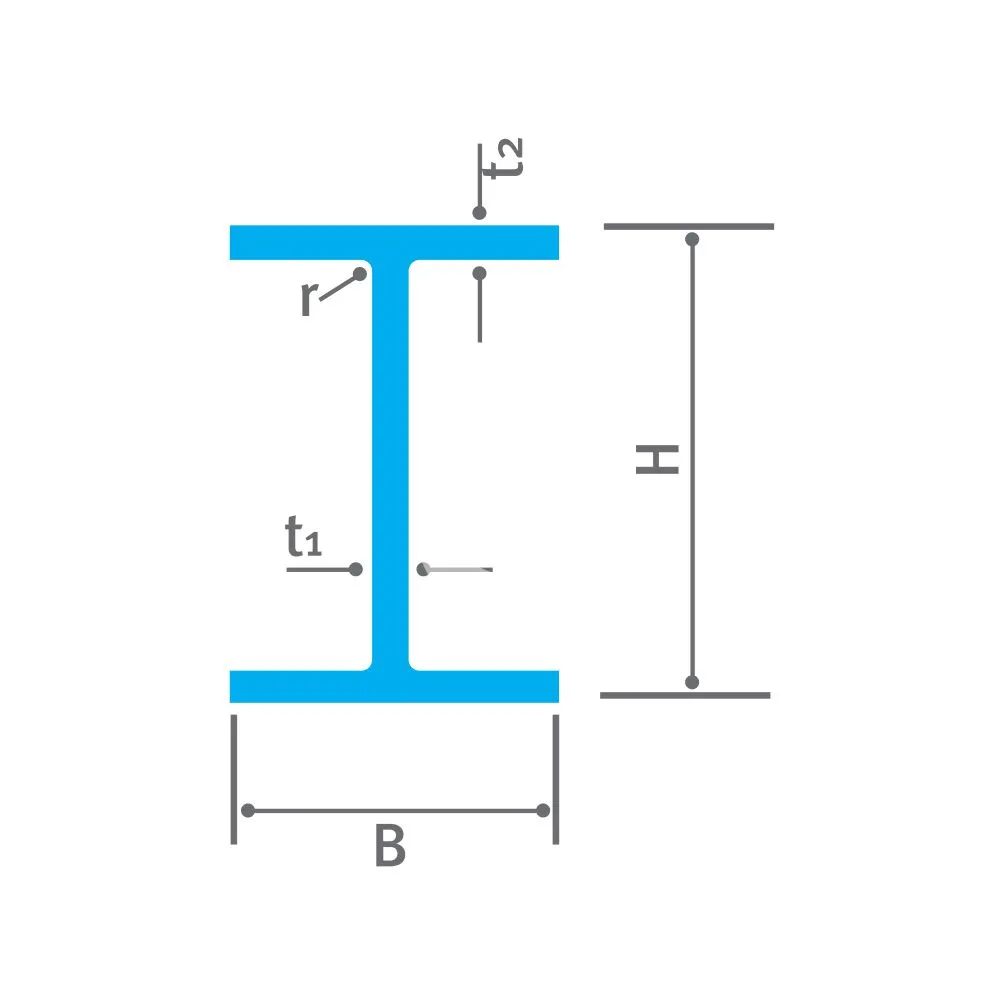

Standard Sectional Dimension (mm) |
Sectional Area (cm²) |
|||||
|
W |
H |
B |
t1 |
t2 |
r |
A |
||
|
150UB |
14 |
14 |
150 |
75 |
5 |
7 |
8 |
17.85 |
|
18 |
18 |
155 |
75 |
6 |
9.5 |
8 |
22.96 |
|
|
200UB |
18 |
18.2 |
198 |
99 |
4.5 |
7 |
11 |
23.18 |
|
23 |
22.3 |
201.6 |
133 |
5 |
7 |
8.9 |
28.68 |
|
|
25 |
25.4 |
203.2 |
133 |
5.8 |
7.8 |
8.9 |
32.31 |
|
|
30 |
29.8 |
207 |
134 |
6.3 |
9.6 |
8.9 |
38.24 |
|
|
250UB |
26 |
25.7 |
248 |
124 |
5 |
8 |
12 |
32.68 |
|
31 |
31.4 |
251.5 |
146 |
6.1 |
8.6 |
8.9 |
40.08 |
|
|
37 |
37.3 |
256.2 |
146 |
6.4 |
10.9 |
8.9 |
47.51 |
|
|
310UB |
32 |
32 |
298 |
149 |
5.5 |
8 |
13 |
40.8 |
|
41 |
40.4 |
304 |
165 |
6.1 |
10.2 |
11.4 |
52.08 |
|
|
47 |
46.2 |
307.2 |
166 |
6.7 |
11.8 |
11.4 |
59.29 |
|
|
360UB |
45 |
44.7 |
352 |
171 |
6.9 |
9.7 |
11.4 |
57.24 |
|
51 |
50.7 |
355.6 |
171 |
7.3 |
11.5 |
11.4 |
64.73 |
|
|
57 |
56.7 |
358.6 |
172 |
8 |
13 |
11.4 |
72.44 |
|
|
410UB |
54 |
53.7 |
402.6 |
178 |
7.6 |
10.9 |
11.4 |
68.86 |
|
60 |
59.7 |
406.4 |
178 |
7.8 |
12.8 |
11.4 |
76.39 |
|
|
460UB |
67 |
67.1 |
453.8 |
190 |
8.5 |
12.7 |
11.4 |
85.79 |
|
75 |
74.6 |
457.4 |
190 |
9.1 |
14.5 |
11.4 |
95.2 |
|
|
82 |
82.1 |
460.4 |
191 |
9.9 |
16 |
11.4 |
104.6 |
|
|
530UB |
82 |
82 |
528.2 |
209 |
9.6 |
13.2 |
14 |
105 |
|
93 |
92.4 |
533 |
209 |
10.2 |
15.6 |
14 |
118.1 |
|
|
610UB |
102 |
101 |
602 |
228 |
10.6 |
14.8 |
14 |
129.8 |
|
114 |
113 |
607 |
228 |
11.2 |
17.3 |
14 |
144.7 |
|
|
125 |
125 |
611.6 |
229 |
11.9 |
19.6 |
14 |
159.6 |
|
|
690UB |
125 |
125 |
677.9 |
253 |
11.7 |
16.2 |
15.2 |
159.5 |
|
140 |
140 |
683.5 |
253.7 |
12.4 |
19 |
15.2 |
178.4 |
|
|
760UB |
147 |
147 |
754 |
265.2 |
12.8 |
17.5 |
16.5 |
187.2 |
|
173 |
173 |
762.2 |
266.7 |
14.3 |
21.6 |
16.5 |
220.4 |
|
|
197 |
197 |
769.8 |
268 |
15.6 |
25.4 |
16.5 |
250.6 |
|
|
220 |
220 |
775.5 |
269.8 |
17.4 |
28.3 |
16.5 |
280.1 |
|
|
244 |
244 |
781.3 |
271.6 |
19.3 |
31.3 |
16.5 |
311.1 |
|
