Universal Beam

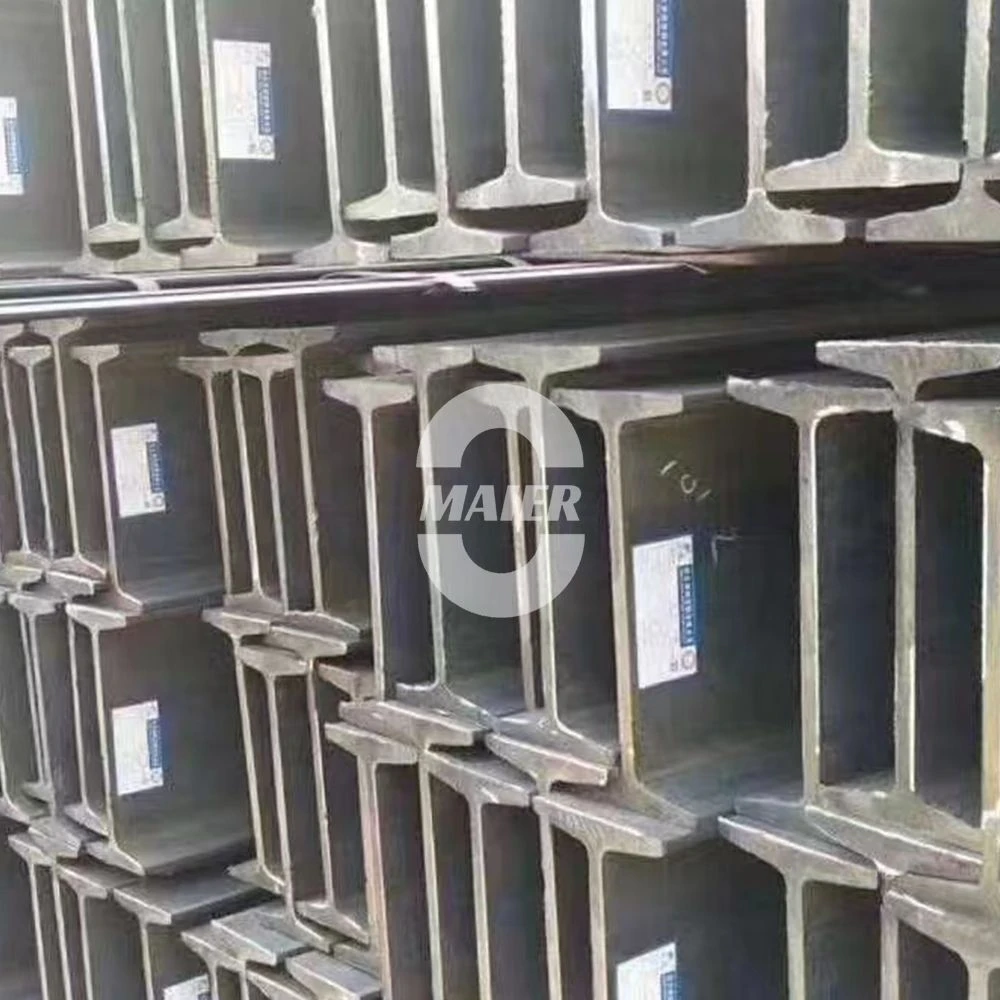

H Section AS/NZS3679.1 (UC)

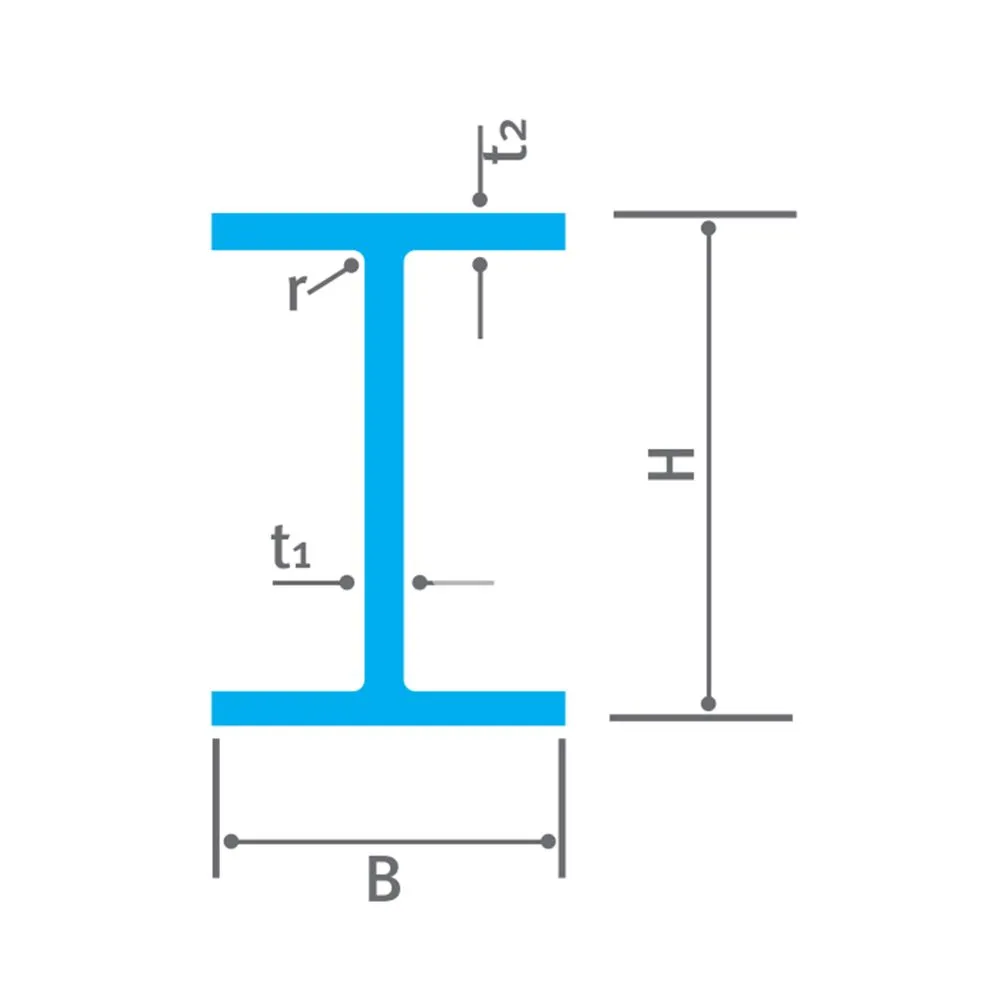

Dimensions and Sectional Properties
▶ Australian/New Zealand Universal Columns
(AS/NZS)-UC AS/NZS 3679.1:2010
Product Specifications
|
|
Unit Weight (kg/m) |
Standard Sectional Dimension (mm) |
Sectional Area (cm²) |
|||||
|
W |
H |
B |
t1 |
t2 |
r |
A |
||
|
100UC |
15 |
14.8 |
97 |
99 |
5 |
7 |
10 |
18.87 |
|
150UC |
23 |
23.4 |
152.4 |
152 |
6.1 |
6.8 |
8.9 |
29.82 |
|
30 |
30 |
157.6 |
153 |
6.6 |
9.4 |
8.9 |
38.6 |
|
|
37 |
37.2 |
161.8 |
154 |
8.1 |
11.5 |
8.9 |
47.34 |
|
|
200UC |
46 |
46.2 |
203.4 |
203 |
7.3 |
11 |
11.4 |
59.02 |
|
52 |
52.2 |
206.4 |
204 |
8 |
12.5 |
11.4 |
66.63 |
|
|
59 |
59.5 |
209.8 |
205 |
9.3 |
14.2 |
11.4 |
76.21 |
|
|
250UC |
73 |
72.9 |
253.8 |
254 |
8.6 |
14.2 |
14 |
93.2 |
|
89 |
89.5 |
260 |
256 |
10.5 |
17.3 |
14 |
113.9 |
|
|
310UC |
97 |
96.8 |
308 |
305 |
9.9 |
15.4 |
16.5 |
123.7 |
|
118 |
118 |
314.6 |
307 |
11.9 |
18.7 |
16.5 |
150.1 |
|
|
137 |
137 |
320.6 |
309 |
13.8 |
21.7 |
16.5 |
174.7 |
|
|
158 |
158 |
327.2 |
311 |
15.7 |
25 |
16.5 |
201.4 |
|
