Unverisal Beam

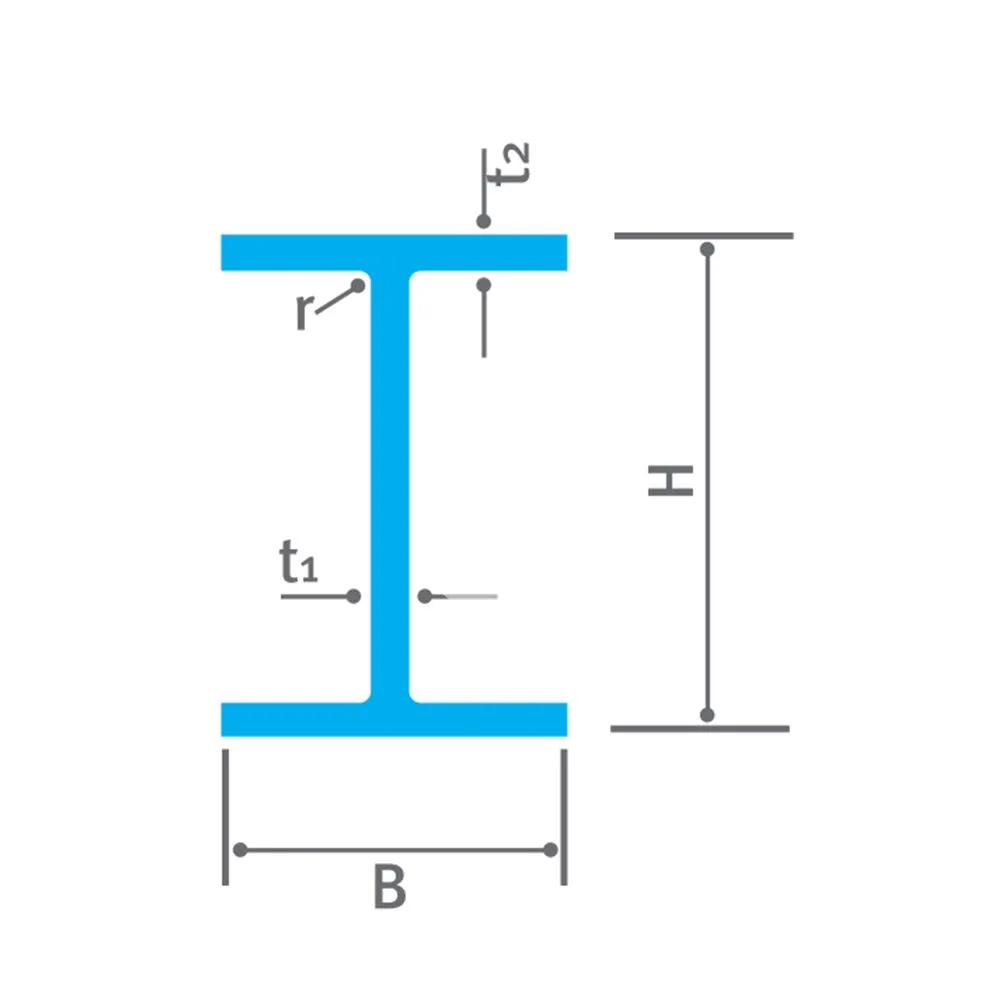

H Section ASTM
Dimensions and Sectional Properties
▶ ASTM A6-2014
Product Specifications
|
|
Unit Weight (lbs/ft) |
Unit Weight (kg/m) |
Standard Sectional Dimension (mm) |
Sectional Area (cm²) |
||||
|
W |
M |
H |
B |
t1 |
t2 |
r |
A |
|
|
W4 x 4 |
13 |
19.3 |
106 |
103 |
7.1 |
8.8 |
7.6 |
24.9 |
|
W5 x 5 |
16 |
23.8 |
127 |
127 |
6.1 |
9.1 |
7.6 |
30.26 |
|
19 |
28.1 |
131 |
128 |
6.9 |
10.9 |
7.6 |
35.88 |
|
|
W6 x 4 |
8.5 |
13 |
148 |
100 |
4.3 |
4.9 |
7.6 |
16.25 |
|
9 |
13.5 |
150 |
100 |
4.3 |
5.5 |
7.6 |
17.48 |
|
|
12 |
18 |
153 |
102 |
5.8 |
7.1 |
7.6 |
22.99 |
|
|
16 |
24 |
160 |
102 |
6.6 |
10.3 |
7.6 |
30.76 |
|
|
W6 x 6 |
15 |
22.5 |
152 |
152 |
5.8 |
6.6 |
7.6 |
28.63 |
|
20 |
29.8 |
157 |
153 |
6.6 |
9.3 |
7.6 |
38.1 |
|
|
25 |
37.1 |
162 |
154 |
8.1 |
11.6 |
7.6 |
47.57 |
|
|
W8 x 4 |
10 |
15 |
200 |
100 |
4.3 |
5.2 |
7.6 |
19.08 |
|
13 |
19.3 |
203 |
102 |
5.8 |
6.5 |
7.6 |
24.72 |
|
|
15 |
22.5 |
206 |
102 |
6.2 |
8 |
7.6 |
28.6 |
|
|
W8 x 5¼ |
14 |
21.4 |
203 |
134 |
5 |
6.4 |
7.6 |
27.21 |
|
18 |
26.6 |
207 |
133 |
5.8 |
8.4 |
7.6 |
33.93 |
|
|
21 |
31.3 |
210 |
134 |
6.4 |
10.2 |
7.6 |
39.97 |
|
|
W8 x 6½ |
24 |
35.9 |
201 |
165 |
6.2 |
10.2 |
10.2 |
45.78 |
|
28 |
41.7 |
205 |
166 |
7.2 |
11.8 |
10.2 |
53.11 |
|
|
W8 x 8 |
31 |
46.1 |
203 |
203 |
7.2 |
11 |
10.2 |
58.62 |
|
35 |
52 |
206 |
204 |
7.9 |
12.6 |
10.2 |
66.52 |
|
|
40 |
59 |
210 |
205 |
9.1 |
14.2 |
10.2 |
75.6 |
|
|
48 |
71 |
216 |
206 |
10.2 |
17.4 |
10.2 |
91.05 |
|
|
58 |
86 |
222 |
209 |
13 |
20.6 |
10.2 |
110.5 |
|
|
67 |
100 |
229 |
210 |
14.5 |
23.7 |
10.2 |
126.8 |
|
|
W10 x 4 |
12 |
17.9 |
251 |
101 |
4.8 |
5.3 |
7.6 |
22.68 |
|
15 |
22.3 |
254 |
102 |
5.8 |
6.9 |
7.6 |
28.43 |
|
|
17 |
25.3 |
257 |
102 |
6.1 |
8.4 |
7.6 |
32.26 |
|
|
19 |
28.4 |
260 |
102 |
6.4 |
10 |
7.6 |
36.28 |
|
|
W10 x 5¾ |
22 |
32.7 |
258 |
146 |
6.1 |
9.1 |
7.6 |
41.73 |
|
26 |
38.5 |
262 |
147 |
6.6 |
11.2 |
7.6 |
49.17 |
|
|
30 |
44.8 |
266 |
148 |
7.6 |
13 |
7.6 |
57.1 |
|
