Product Specifications
| Mesh Opening | Wire Thickness | Height | Length | ||
| INCH | MM | BWG | MM | CM | M |
| 3/4 | 20×20 | 18;16;14 | 1.2-2.1 | 50-500 | 10;15;20;25;30 |
| 1 | 25×25 | 18;16;14 | 1.2-2.1 | 50-500 | 10;15;20;25;30 |
| 1-1/4 | 30×30 | 18,16,14,12,10 | 1.2-3.4 | 50-500 | 10;15;20;25;30 |
| 1-1/2 | 40×40 | 18,16,14,12,10 | 1.2-3.4 | 50-500 | 10;15;20;25;30 |
| 2 | 50×50 | 16:14,12,10 | 1.6-3.4 | 50-500 | 10;15;20;25;30 |
| 2-3/8 | 60×60 | 16:14,12,10 | 1.6-3.4 | 50-500 | 10;15;20;25;30 |
| 3 | 75×75 | 14:12;10 | 2.1-3.4 | 50-500 | 10;15;20;25;30 |
| 4 | 100×100 | 14;12,10;8 | 2.1-4.0 | 50-500 | 10;15;20;25;30 |
| Material | Low Carbon Steel Wire | Stainless Steel Wire | PVC Coated Wire | |
| Wire Diameter | 1.2mm-5mm | |||
| Mesh Opening | 20 mm×20 mm-50 mm ×50 mm | |||
| Fencing Height | 0.6-3.5m | |||
| Zinc on the Wire | Electro Galvanised | Hot Dipped Galvanised | Heavily Galvanised | Aluminum- Galvanised |
| Edge Types | Knuckle | Twisted | ||
| Roll Length | 10m-50m | |||
| Packing | Packed With Paper | Plastic Film Two Sides | ||

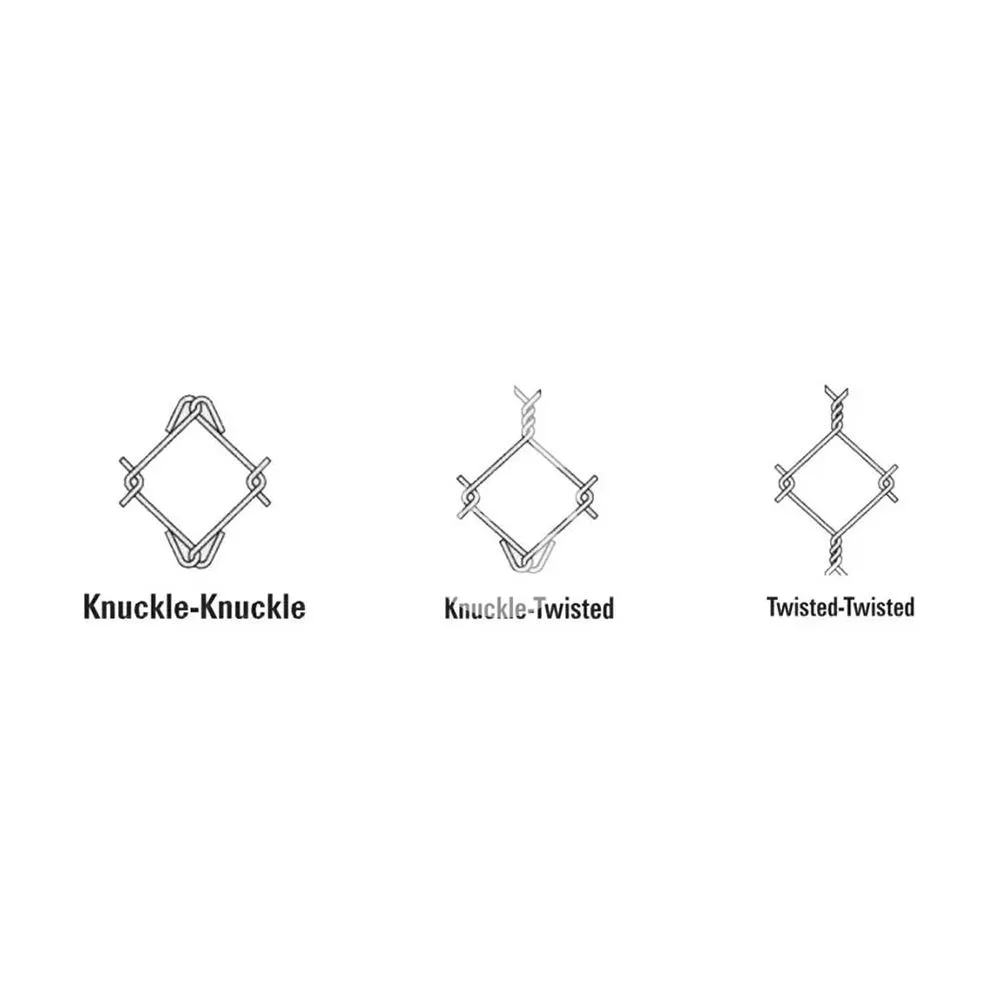

| Selvedge |
Knuckle-Knuckle (KK) The wire is knuckled at both ends and is abbreviated(KK) |
Knuckle -Twist (KT) The wire is knuckled at the bottom and twisted into a barbed selvedge at the top and is abbreviated as (KT) |
Twist -Twist (TT) The wire is twisted into a barbed selvedge at both ends and is abbreviated as (TT) |
|
